Emissions MONITORING
TES helps businesses monitor emissions with confidence. Working with world-leading manufacturers of instrumentation, TES designs and integrates these instruments into complete continuous emission monitoring systems, ensuring customers receive a solution that meets or exceeds their requirements.
About Emissions Monitoring
Accurate emissions monitoring is essential for companies to meet environmental regulations, improve efficiency and ensure nearby communities remain protected.
A reliable continuous emissions monitoring system allows you to see what is happening within your stack or process so that you can remain compliant and make data-led decisions. At TES, we make it easy to find the right emissions monitoring solution. Our lineup combines the highest quality instruments with expert advice and ongoing support, so you can feel confident that the emissions you are measuring are what is actually being emitted.
Instrument Types to
Monitor Emissions
Selecting a suitable emissions monitoring system is critical in achieving both company and regulatory goals. Here is a quick overview of the three main emissions monitoring technologies and the unique advantages of each.
In-Situ Instruments

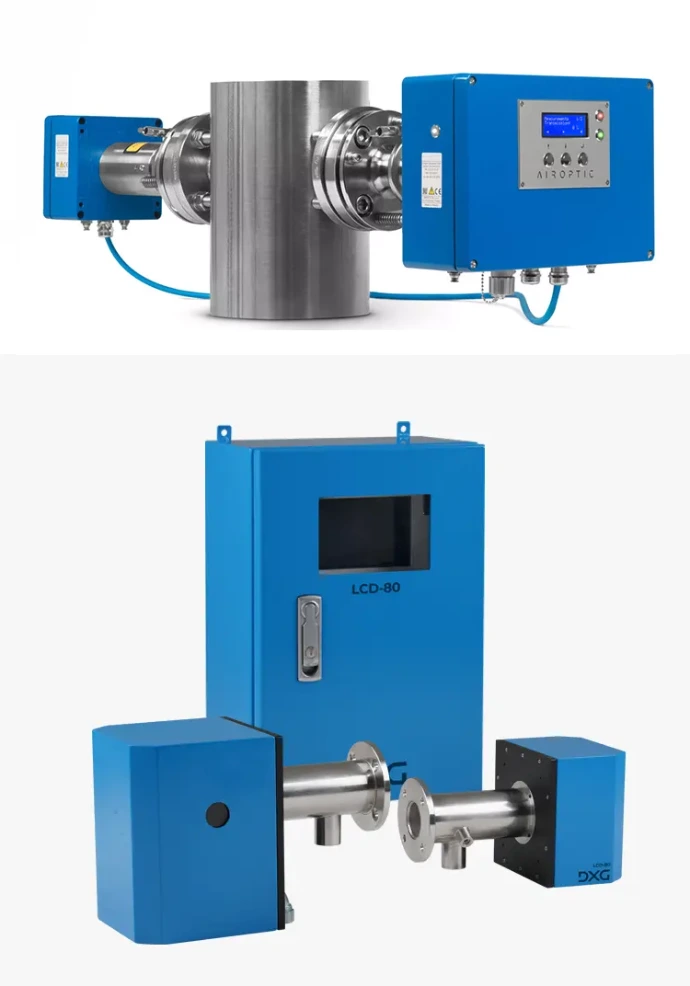

In-situ analysers mount directly onto the stack, providing direct measurement of gas concentration in the stack or duct, offering continuous, real-time readings with minimal sample handling. They are ideal for plants that need immediate data and minimal maintenance, specifically catering for applications where only a few gases or particulates need to be measured.
Featured Equipment
GASMET SYSTEMS

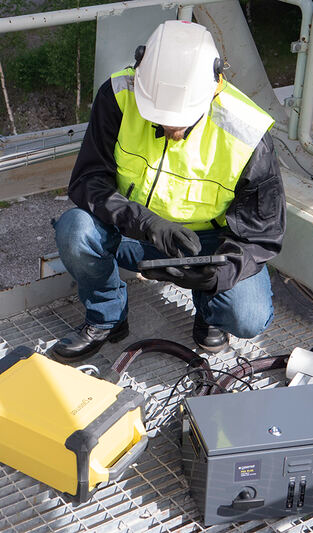

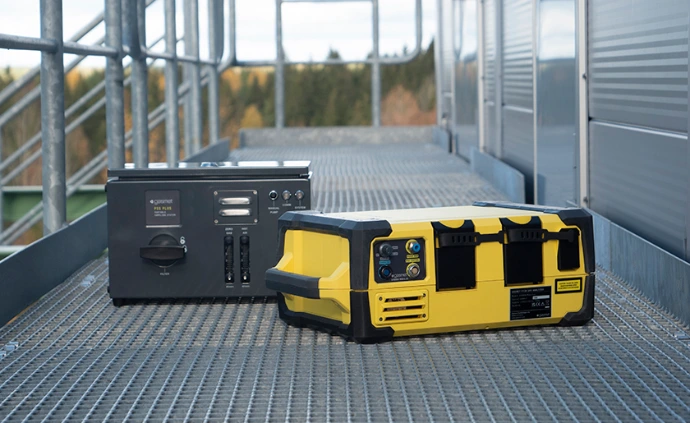

One of our most versatile solutions is the Gasmet GT6000. This transportable FTIR gas analyser offers accurate multi-gas measurement for a wide variety of industrial emissions monitoring needs. Rugged and compact, it's perfect for short-term stack testing and compliance audits where fixed systems are not feasible.
With the GT6000, you gain the confidence of measurements backed by our training, technical support and calibration services. When you require a reliable solution for routine testing or back-up analysis, this portable unit is an invaluable addition to your emissions arsenal.

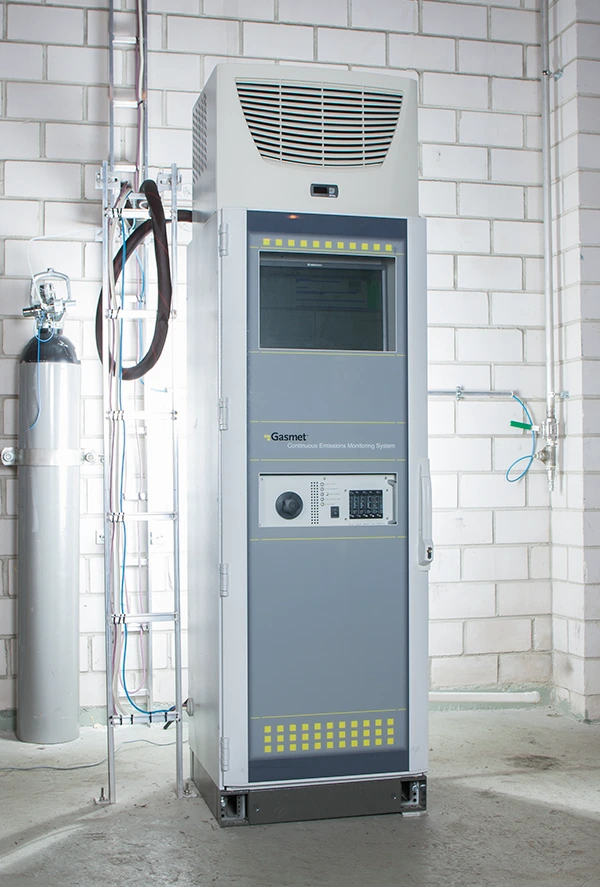

The GASMET Continuous Emissions Monitoring System (CEMS II e) is a powerful and flexible solution for real-time industrial emissions monitoring. Renowned for its ability to measure over 50 different gases simultaneously, including CO, NOx, SO₂, HCl, HF, NH₃ and various VOCs, without the need for multiple analysers. This unmatched multi-gas capability makes it ideal for complex emission sources such as waste incinerators, cement kilns and power plants.
Extractive Systems
Gas is continuously drawn from the stack down heated umbilical lines and conditioned (filtered and cooled) before being analysed by sensitive analysers, ensuring accurate results in tough environments.
Our systems include:
- Gas analysers specifically chosen for the application
- Dust/opacity monitors
- Flow/velocity sensors
- Sample probes, calibration tools and enclosures
- Factory-tested components for quality assurance
Featured Equipment
DIRECT EXTRACTIVE AND DILUTION EXTRACTIVE CONTINUOUS GAS ANALYSER SYSTEMS
Designed for tough emissions and process monitoring, these systems handle corrosive gases like H₂S and TRS with ease. Customised for your site, they feature high-temp options, data logging and multiple gas measurement capabilities.
Extractive Dilution Systems
Extractive dilution systems dilute the sample gas using a special dilution probe at the stack with clean and dry air before drawing it down unheated umbilical lines for analysis at the base of the stack. This method eliminates the need for expensive heated umbilical sample lines allowing for longer umbilical lines to be used. (up to 100m). The dilution technique is ideal for hot, wet or sticky applications, where direct measurement would wreck equipment or degrade accuracy.
Featured Equipment
A small sample is drawn from the stack and is diluted before passing through the various system components. As a result of the dilution process there are less particulates, less moisture and lower maintenance is required. All systems designed, assembled and integrated locally to meet your specific requirements.
- Ideal for monitoring corrosive gases in corrosive sample streams
- Utilises Teledyne API Ambient analysers
- 2 Years Warranty on Teledyne API Analysers
- Overlap with fenceline
Uses of Emissions Monitoring
From electricity generation to waste incineration to aluminium and steel smelting, industries rely on continuous emission monitoring systems to track gases, particulates and other pollutants. Common applications include:
Ensuring compliance with environmental regulations
Reducing operation risk and avoiding costly fines
Providing the community with accurate data and transparent reporting
Increasing the efficiency of processes
Partners and References
If you'd like to learn more about how we work with world-leading tech partners and deliver solution-driven results, then please do get in touch.
Contact Us
CEMS
Frequently Asked Questions
In-situ technologies measure gases directly in the process, while extractive systems draw a sample down umbilical lines and measure it typically using analysers at the base of the stack. Both have their own benefits, with in-situ systems suiting situations where only a couple of gases need to be measured and extractive applications where multiple gases need to be measured. For example, our Gasmet CEM II e can measure over 50 gases simultaneously. Speak to our team to learn more about the best solution for your site.
Maintenance intervals depend on your site conditions and the system you have installed. TES’ ongoing maintenance services help you keep your emissions monitors current and finely calibrated.
Some large organisations choose to self-manage their emissions monitors. However, due to their complexity, most clients find TES's continuous support helpful in fostering long-term compliance and performance.
Common gases that can be measured include CO, CO₂, SO₂, NO/NO₂, H₂S, NH3 (subscript) and O₂. However, our more sophisticated systems are capable of measuring well over 50 gases.
TES offers specialist equipment for detecting the presence of each pollutant. Contact our team to find out which solution best suits your application.
READY TO TAKE CONTROL OF EMISSIONS MONITORING?
Choosing a continuous emission monitoring system doesn't have to be a headache. TES offers complete solutions that feature the best technology, clear advice and responsive service so you can implement your environmental monitors with confidence. Get in touch with us today regarding tailored solutions to monitor emissions at your site.
