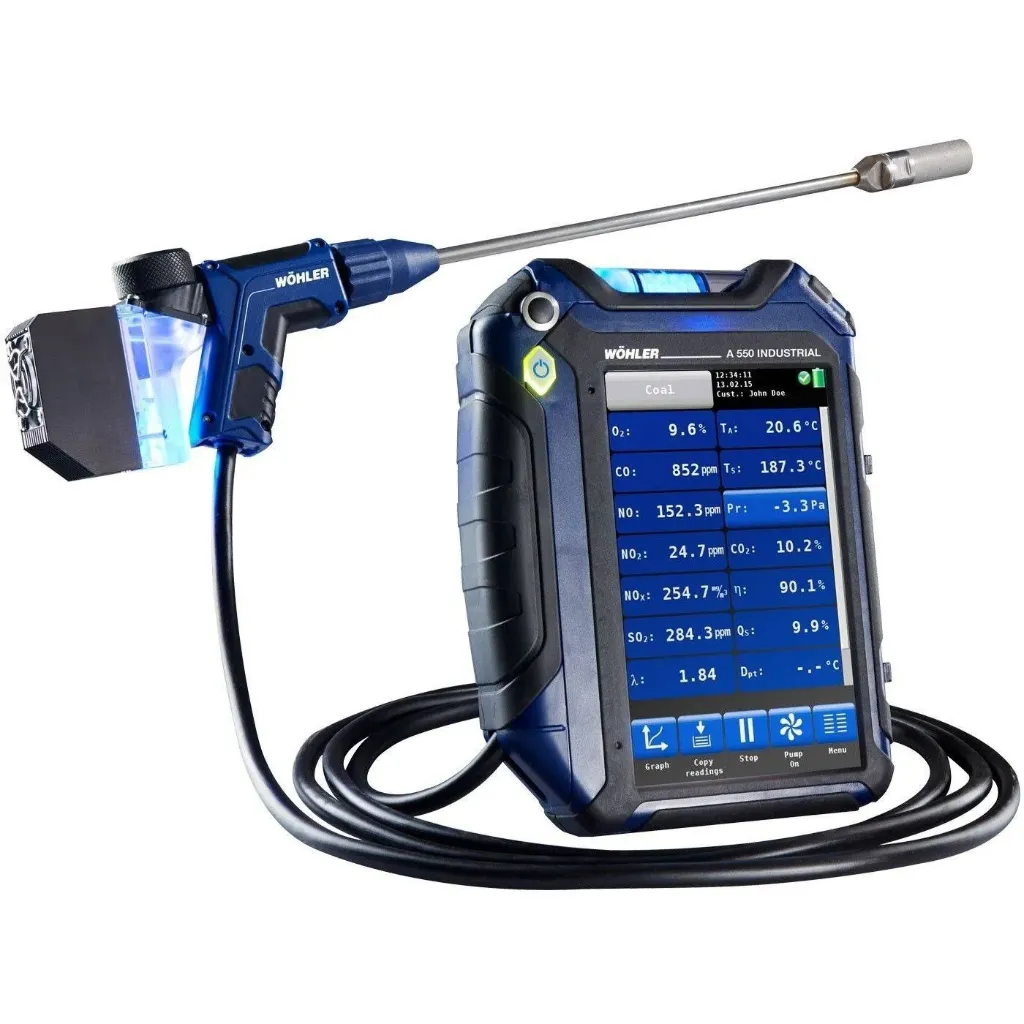

The Wöhler A 550 INDUSTRIAL is a rugged flue gas analyser coal power plants or high temperature industrial processes.
The user-friendly interface, with a large 7" colour touchscreen, is brightly lit and easy to read in any setting.
It can accommodate up to 5 sensors at once, offering a wide range of options including NO2,
SO2, NO, CO2 NDIR, and H2S. O2 and CO sensors are always included, with a range of up
to 100,000 ppm.
Data transfer is easy with multiple interfaces available, including USB, infrared, and WiFi. Additionally, the Wöhler TD 100 Thermal Fast Printer allows you to print out readings on-site.
The battery-driven peltier cooler ensures accurate NOX and SOX readings, while also providing off-grid flexibility. For added protection against industrial dust loads, you can opt for the stainless steel sinter-filter. The Wöhler A 550 INDUSTRIAL offers a variety of sample probe lengths, making it possible to take emission measurements in hard-to-reach locations. To measure flue gas velocity and flow rate, it is equipped with a dual port digital pressure sensor. Different lengths and dimensions of S-Tubes and Prandl-probes are available.

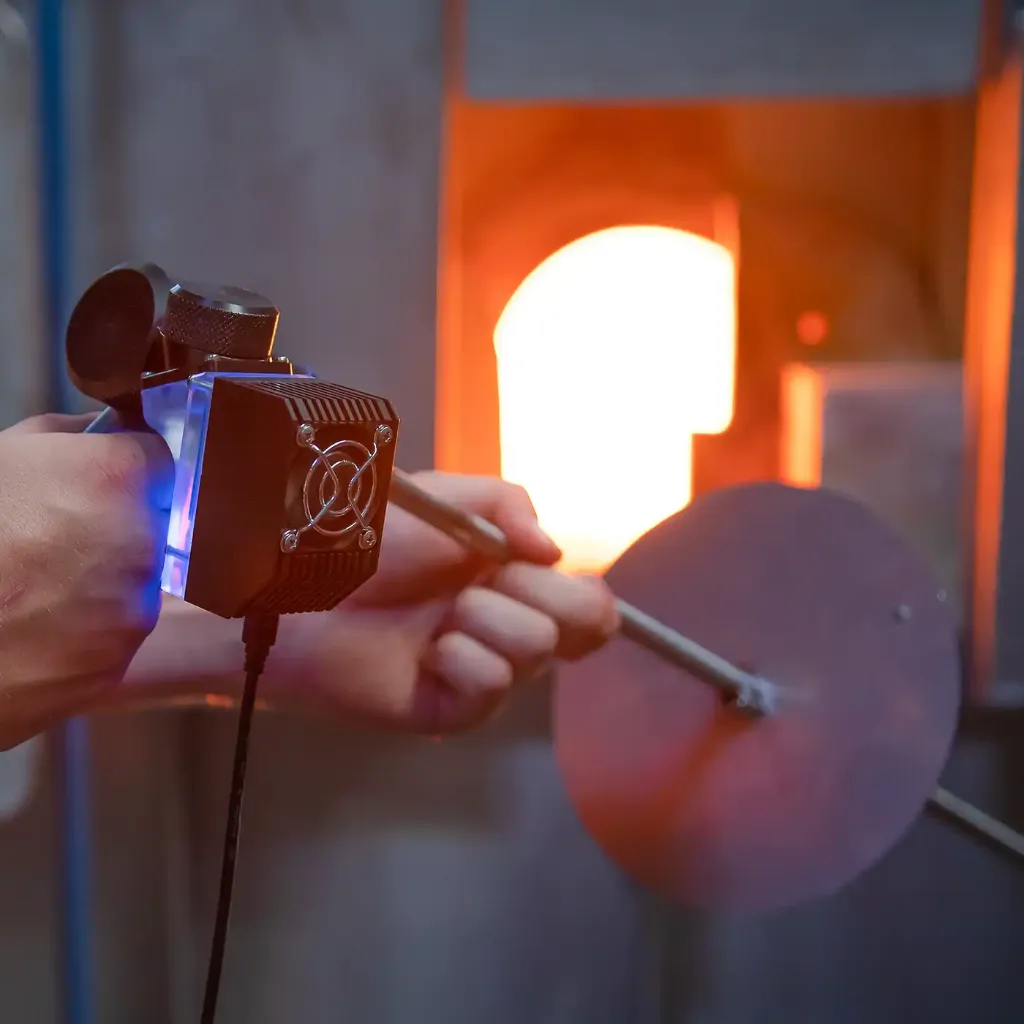

With the high temperature probe, you can perform measurements in environments with temperatures up to 1,200 °C. It comes with a sinter-filter for extreme conditions and can be extended from 1 meter to 2 meters. At both lengths, it can be equipped with a thermo-couple for in-stack temperature measurements.
Features
- NOX and SOX measurement with 0.1 ppm resolution
- High temperature probe up to 1,200 °C with in-stack sinter-filter
- Battery-driven peltier cooler – optimal gas preparation for accurate measurements
- High-power sample pump for differential pressures up to 300 mbar
- Built-in logger function for long term measurements with user selectable configuration
- Up to 5 Sensors at a time, choice of 8 parameters in total.
Application
- For industrial heating systems
- For burner adjustment and determination of combustion loss
- For commercial and industrial applications
- In-stack sinter-filter for heavy dust loaded samples
- High temperature processes
Data Management
- 1,000 measurement records
- Compatible with the Flue Gas Analysis App for Android and iOS
- Data transfer via USB, WiFi or Infrared
Safety / Reliability
- Effective dust and condensate protection
- Analyser and sensor diagnostics
- Sensor replacement – user-friendly
- Rechargeable battery: more than 7 h with Lithium-ion power
- Hose assembly – robust and flexible
