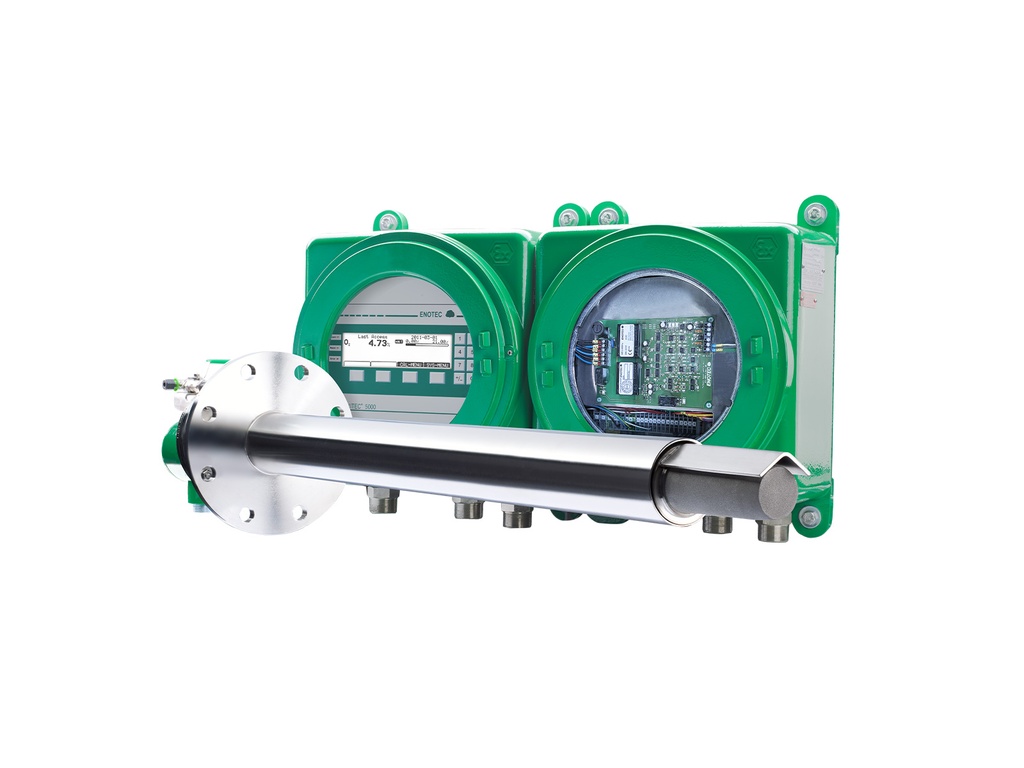

The OXITEC® 5000 GasEx measures O2 InSitu in gas explosion zones 1/2 for safe and exact process control. The OXITEC® 5000 GasEx is a robust oxygen analyzer which combines the reliability and quality of OXITEC® analyzers with the stringent standards necessary for EX protection for maximum plant safety.
ENOTEC certifies its analyzers under process-similar conditions to ensure reliable and safe process control in gas hazardous zones 1/2.
The ATEX certifications for ENOTEC products is valid for systems with process temperatures of up to 1400 °C.
Probe: ll 2G Ex d IIC T3 Gb
Electronic unit: II 2G Ex d IIC T6 Gb
For ATEX certified systems for measurement in dust Ex environments, we recommend COMTEC® 6000 DustEx (O2 measurement only or O2/COe measurement)
Technical Data
| Process gas temperature | max. 500 °C to 1400 °C (with cooling protection tube) |
| Measuring principle O₂ | Zirconium oxide |
| Immersion depth/material | 464 mm/ 924 mm, 500 mm / 1000 with cooling protection tube, stainless steel (SS316TI) |
| Ambient temperature | Probe: -20 °C to +55 °C | Electronics: -20 °C to +55 °C |
| O₂ – Measuring ranges | Two freely-selectable measuring ranges: 0-2 Vol.% to 0-25 Vol.% (others on request) |
| Housing | Probe: IP66 | Electronics: IP66 |
| Type of protection | II 2G Ex db IIC T3 Gb |
Applications
- Refineries
- Gas production plants
- Petrochemical plants
- Gas by-product/Mixed gas furnaces
- EX hazardous areas 1/2
Features
- High accuracy
- Overview of calibration history
- Sensor life expectancy on display
- Gas tight sensor construction
- Self-monitoring
- Unrivaled long service life
