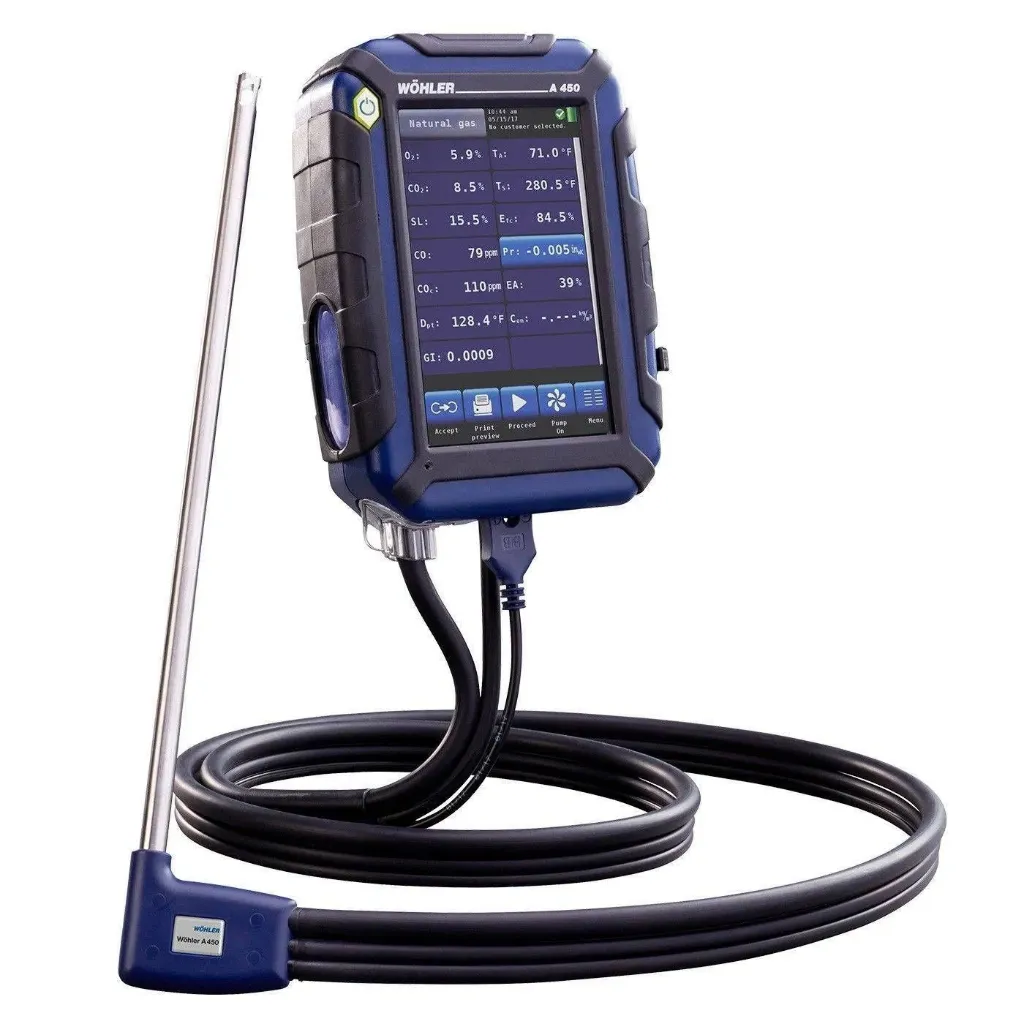

The Wöhler A 450 is a robust, small and lightweight flue gas analyzer with convenient touchscreen operation and a clear color display.
Applications include flue gas measurement, draught measurement, annular gap measurement, burner adjustment aid, adjustment work on gas/oil systems.

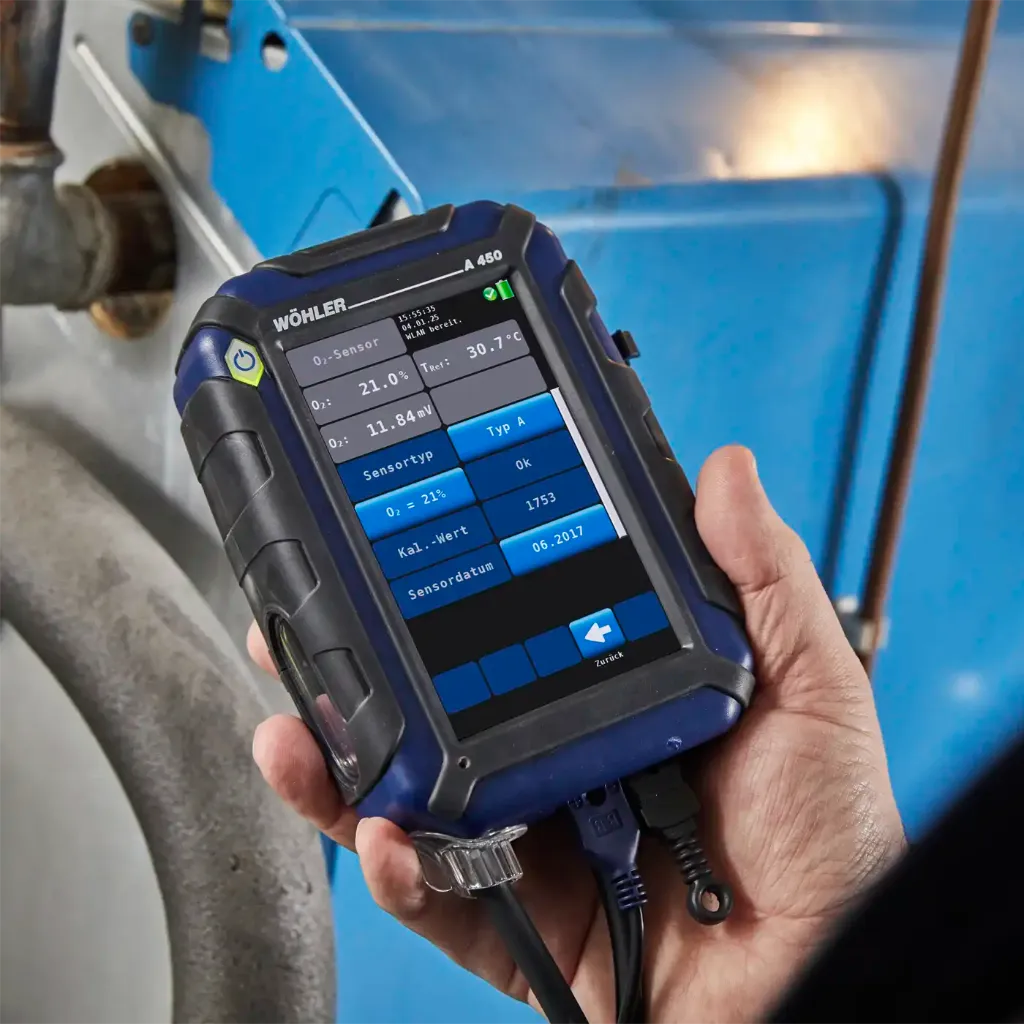

Operation is simple: The menu is organised with icons, just like a smartphone. To access the individual menu items, the user simply needs to tap on the touch display.
All measurement data can be transferred to a smartphone or tablet via WiFi (Android and iOS). There, the measured values are displayed in the Wöhler Flue Gas Analysis App either as numerical values or graphics. You can start and stop the measurement via your end device.
This is particularly useful for measuring points that are difficult to access. The measurement data can be saved in various formats and sent to your customer by e-mail.
Features
- High-resolution 5" touch display with 14 measured values at a glance
- Safety due to high CO measuring range
- TÜV-certified for measurements on combined heat and power plants even without additional accessories
- Future-proof networking thanks to WiFi
- Free Wöhler Flue Gas Analysis App for Android and iOS
Application
- Residential flue gas analysis
- Service and maintenance tasks
- Determine flue gas loss and burner tuning
- Emission control measurements
- NO measurement (optional)
- Differential pressure / gas pressure measurement
Data Management
- Store up to 1,000 customer records
- Data transmission by USB, Wireless LAN or infrared
- Flue Gas Analysis App included
Safety / Reliability
- 24 or 48 months warranty without maintenance agreement
- Effective condensate protection
- Multi-stage filter technology incl. water stop filter
- Electronic filter monitor with illuminated condensate trap
- Analyser and sensor diagnostics
- Field-replaceable sensors – user-friendly
- Rechargeable battery operating time: up to 6 hrs with lithium ion power
- Hose assembly – robust and flexible.
